LDO VORON V0.1 Printer Kit + CR-3D Filament

739,90

Nicht vorrätig

Artikelnummer: LDO-VRN-KIT-V01-BLK Kategorien: , , Schlagwörter: , , , , , ,

Beschreibung

LDO VORON V0.1 Printer Kit inkl. Filament



Das LDO VORON V0.1 Printer Kit beinhaltet folgende Komponenten und Filamente:

  • LDO Frame (Farbe Schwarz)

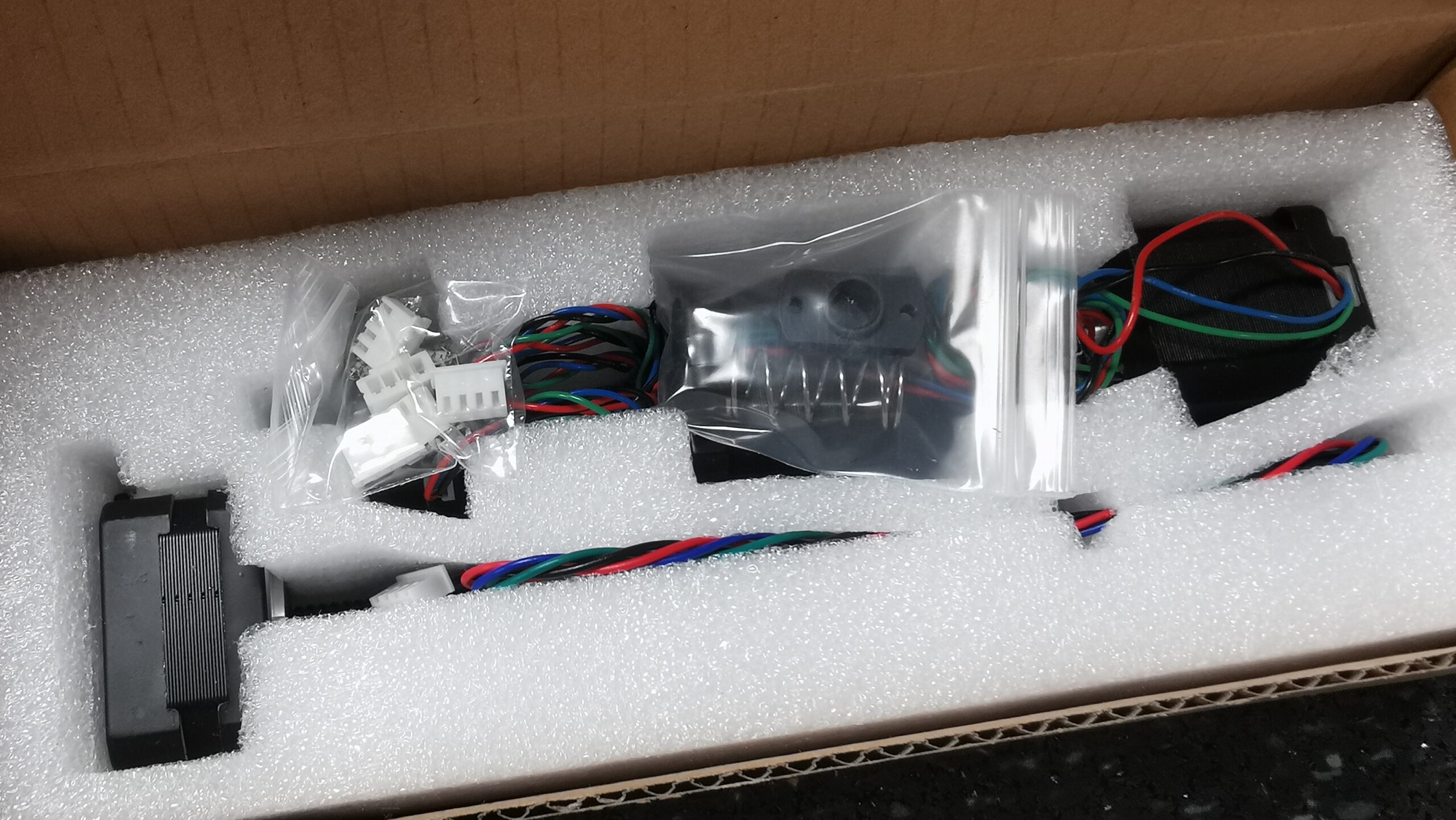

  • LDO V0.1 Motor Kit
  • LDO Rail Kit
  • Phaetus Dragonfly BMO
  • Pre Made Wire kit
  • Fans, heaters, buck converter, hardware, tools
  • 2 Flex Build plates (one powder coated and one smooth PEI) and magnet
  • Cast aluminum bed
  • Raspberry Pi 3B
  • Meanwell LRS-150-24
  • SKR Mini
  • Acrylic enclosure
  • CR-3D ABS Hauptfarbe  (Teilen Sie uns die gewünschte Hauptfarbe aus unserem ABS Sortiment mit)
  • CR-3D ABS Akzentfarbe (Teilen Sie uns die gewünschte Akzentfarbe aus unserem ABS Sortiment mit)

Die komplette Inhaltsbeschreibung finden Sie hier.

Es müssen lediglich die gedruckten Teile angefertigt werden und dann kann es losgehen!



Features and extras

  • Stainless Steel Linear Rails – That’s right, no more worrying about rusty rails. You’ll still want to grease these rails, but you can do it at the end of your build.
  • Machined Rail Nuts – Our kit includes 5 custom machined T nuts to secure the linear rails onto the extrusions, (no need to fiddle with tiny m2 nuts on a thin plastic part)
  • Brass Insert Tool – We’ve included a custom machined brass tip for your soldering iron, use it to install heatset inserts with ease! Check here for more information.
  • Pre-cut & Pre-wired – Our kit includes all necessary wiring: cut to just the right length and pre-crimped or soldered to their respective parts. See our supplementary wiring guide here.
  • Two Types of Nuts – We’ve included both black oxide hex nuts and stainless square nuts in our kit, use whichever type you prefer.
  • Partially Threaded Screws – The small pack of partially threaded SHCS screws (M3x30/x35) are for the mini-afterburner, they help reduce wear on the idler and Latch parts.
  • Hex Wrenches – We found that 1.5mm hex wrenches wear out easily, so we threw in a bunch of them. However, you should definitely still buy a set of good quality hex wrenches.
  • Threadlocker – We included a small tube of threadlocker. Use it on all the grub(set) screws.
  • 2mm Drill Bit – Metric drill bits may not be very common in some parts of the world, so we included one. Use it to ream the filament path in your printed extruder parts.

Guides

  • Printed Parts Guide (LDO supplement) – Are you planning on printing parts before the kit arrives? Read our supplementary print guide to see which parts to print/replace/omit.
  • Wiring Guide – LDO created this supplementary wiring guide to make wiring your printer a breeze.
  • Nuts in 1515 Extrusions – See our 1515 short nut guide here for tips on handling nuts in 1515 aluminum extrusions.

Build Videos

  • Take advantage of the Voron on Discord: https://discord.gg/voron. The community is very active on Discord and the users are very helpful on the #voron_0_questions channel.
  • Download Fusion 360 and get a free license to view the 3D model of the printer. The 3D model is a very useful reference when the manual is ambiguous or unclear.
  • Get a official serial number once you finish building your Voron.



Lieferumfang des LDO VORON V0.1 Printer Kit

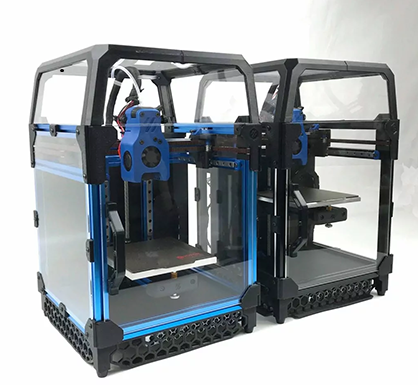

  • 1 x LDO Voron V0.1 Drucker Bausatz Mit Raspberry Pi mit schwarzen Profilen (nicht mit farbigen Profilen, wie auf einigen Abbildungen zu sehen)

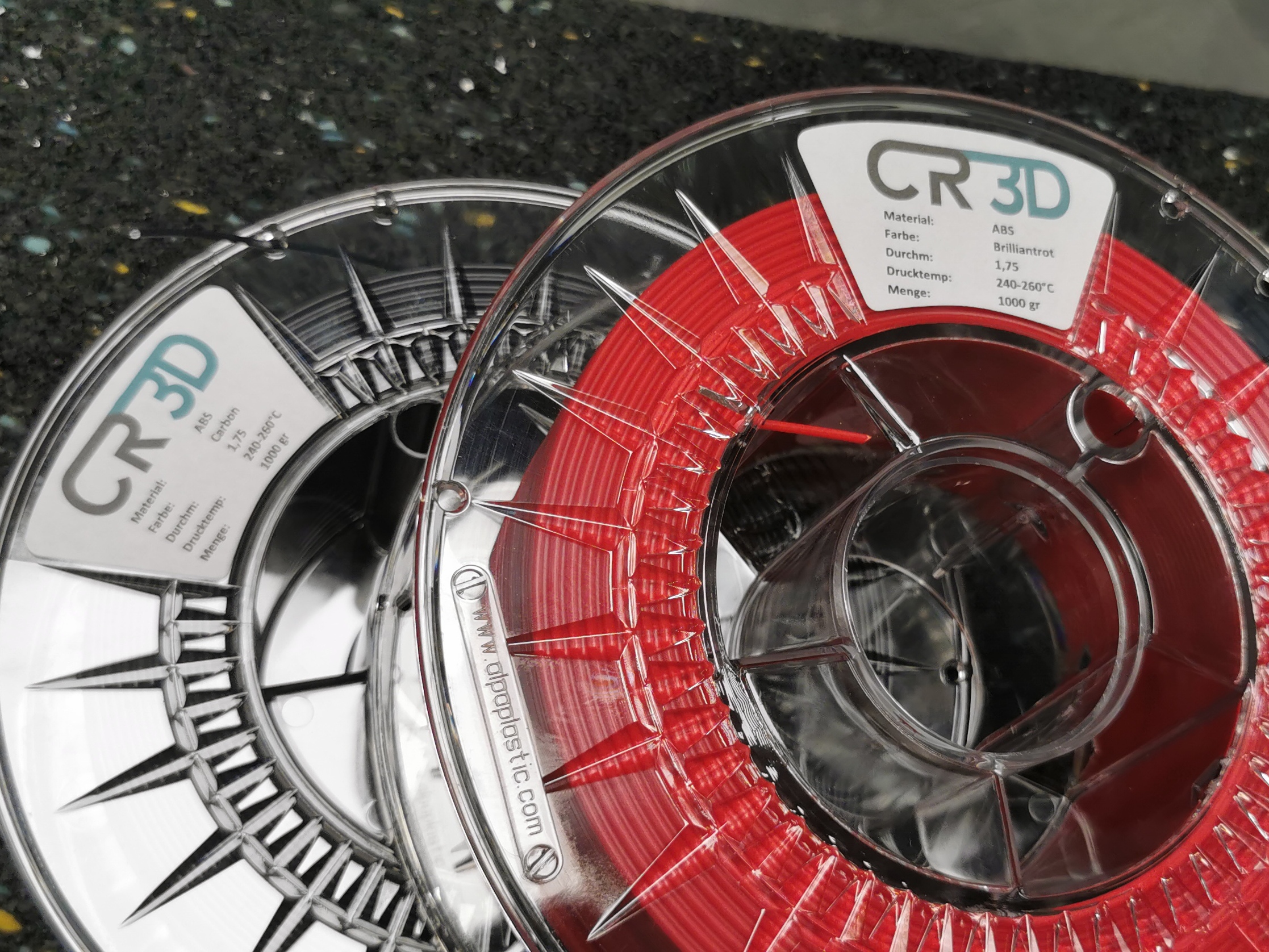

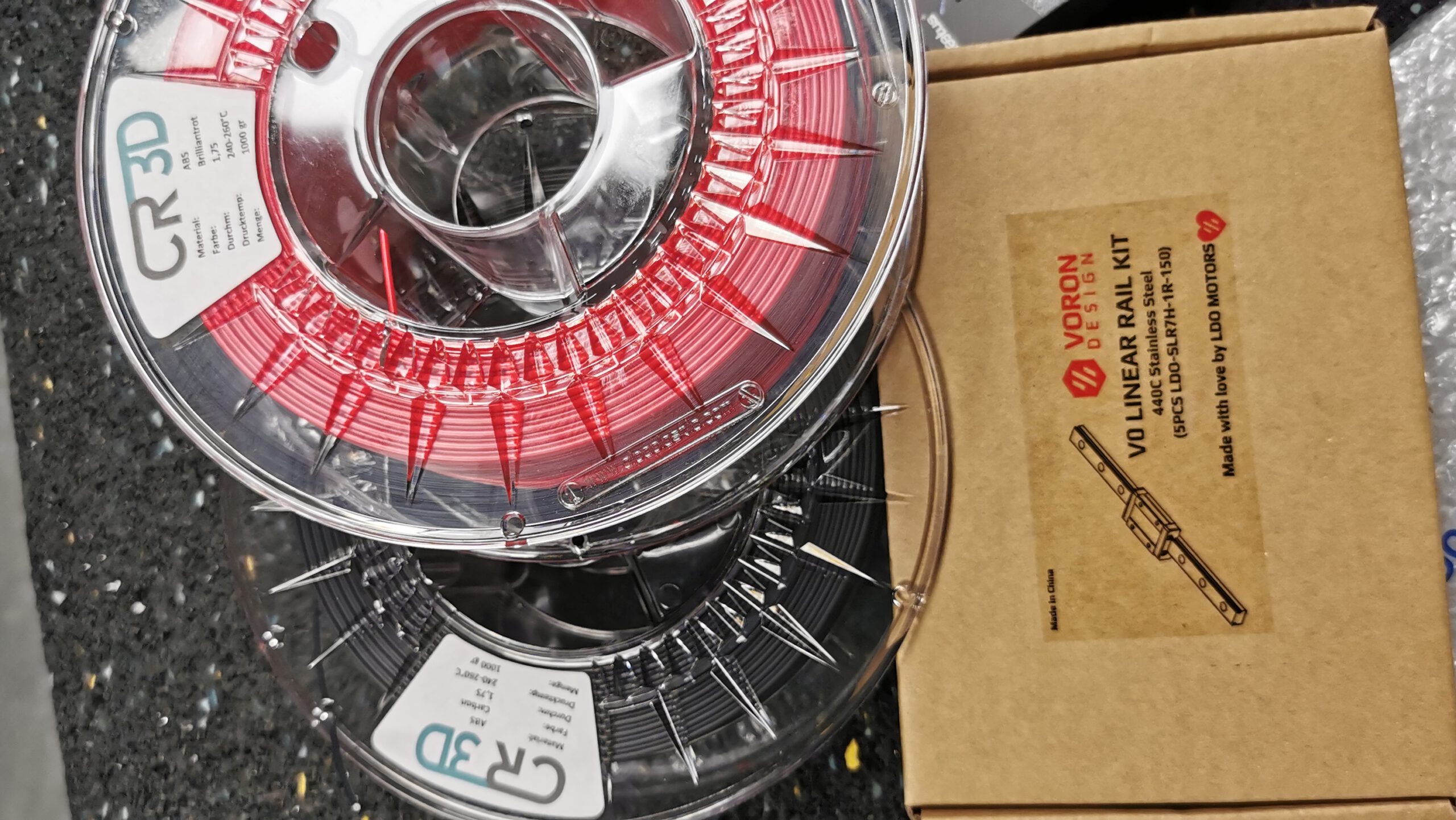

  • + 2 zusätzliche Spulen original CR-3D ABS Filament, je 1kg (Farben nach Wahl).
  • Wichtig: Die benötigten 3D-gedruckten Teile sind (wie bei RepRap-Druckern üblich) nicht im Lieferumfang

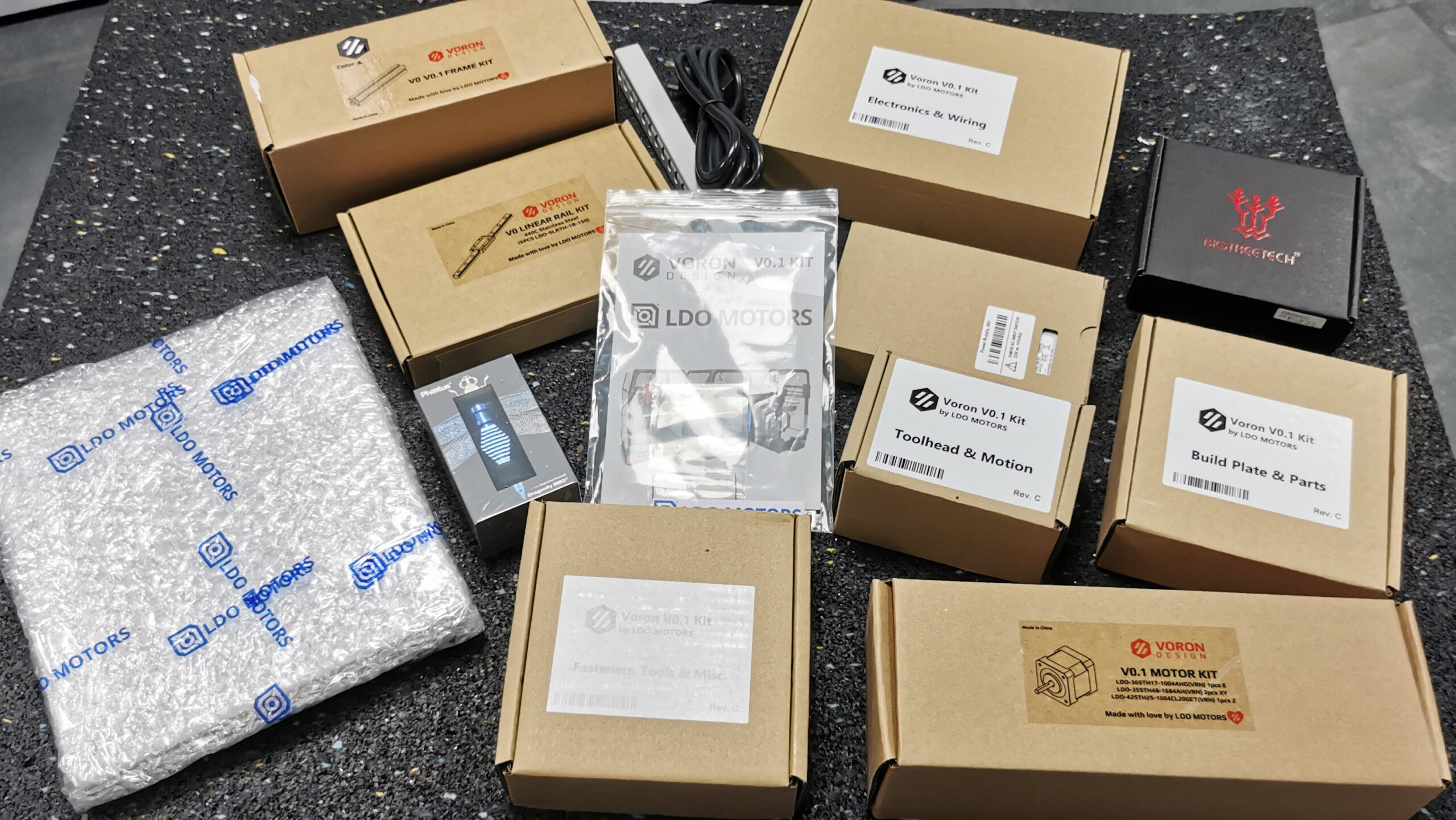

  • Das Paket umfasst diese Teile:
Build Plate & Parts Drag Chain, 7x7mm 1

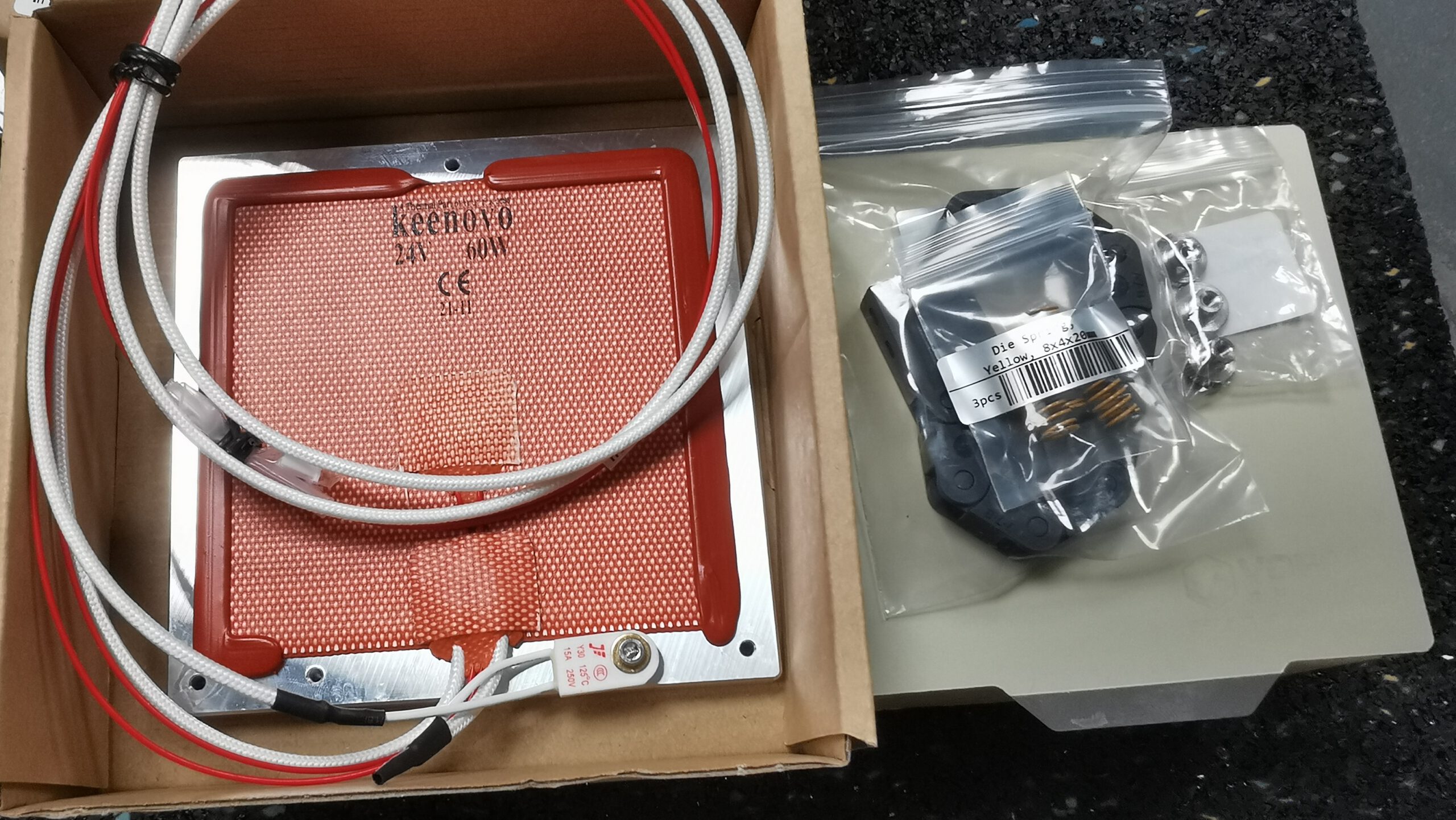

Aluminum Build Plate, 120x120mm Cast Aluminum 1
Keenovo Silicone Heater, 100x100mm,   24VDC 60W, w/ Thermal Fuse 1
Die Springs, Yellow,  8x4x20mm 3
LDO Flex Plate, 120x120mm, Double Side PEI Coated 1
LDO Flex Plate, 120x120mm, Single Side Smooth PEI 1
Rubber Magnetic Pad, 120x120mm 1
Thumb Nut, M3, SS304 3
Electronics & Wiring DC/DC Buck Converter, 24V to 5V 1
Raspberry Pi 3B+ 1
MicroSD Card, 16G 1
Blower Fan, 3010, 24V 2
Axial Fan, 3006, 5V 1
AC Inlet 1
Fuse, Slow Blow, 250VAC 2A 2
Heat Cartridge, 24V 50W 1
Thermistor,  NTC 100K B3950 1

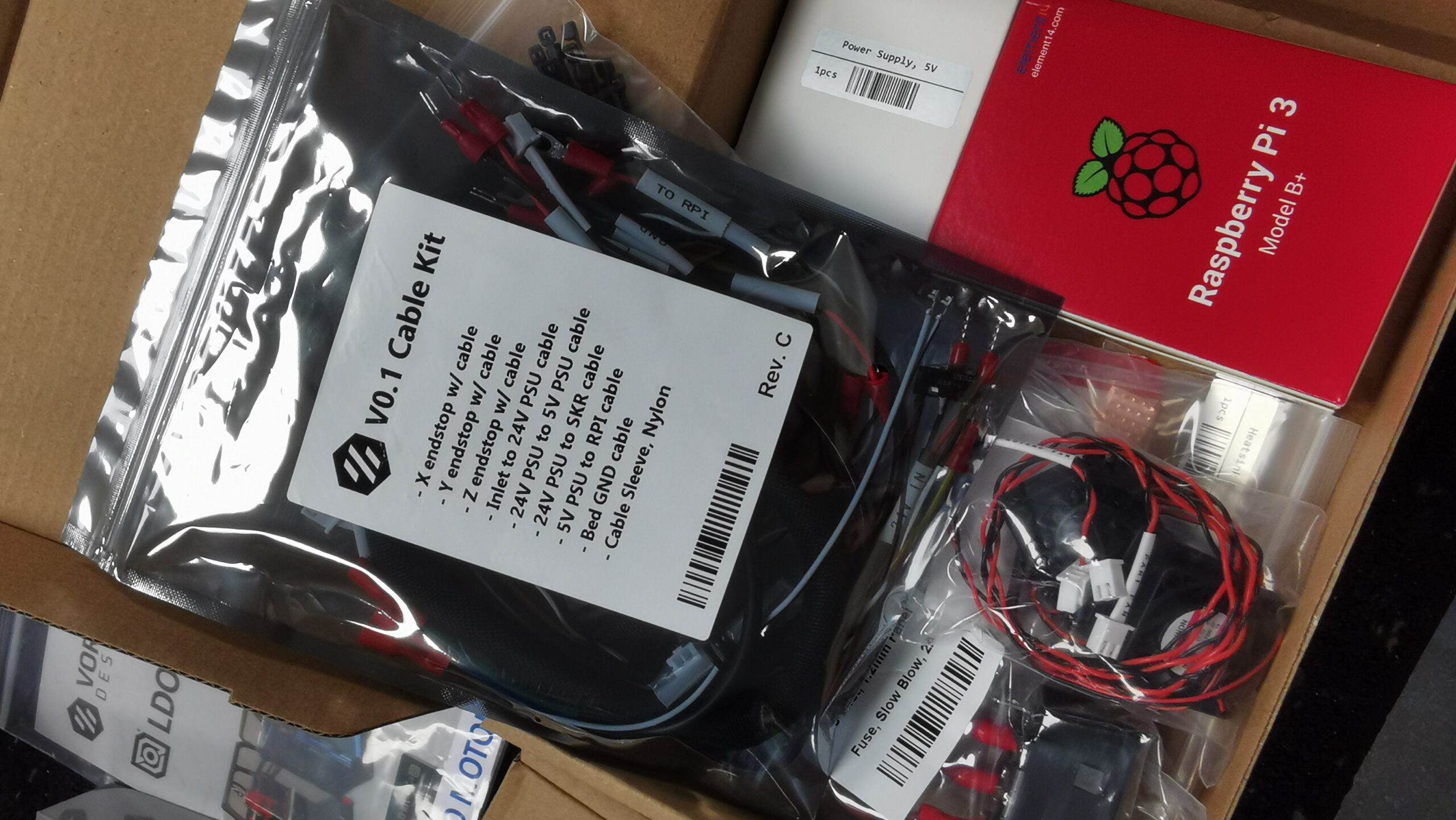

LDO V0.1 Cable Kit (pre-cut&wired) 1
Bowden Tubing, 4x3mm 1
Zip Ties, 3x150mm 100
Fasteners, Tools & Misc Shim Washer, 6x3x0.5mm 38
Hex Nut, M2 60
Hex Nut, M3 130
Square Nut, M3 110
Lock Nut, M3 6
Machine Screw, BHCS, M2x6 75
Machine Screw, FHCS, M2x6 12
Machine Screw, SHCS, M2x8 12
Machine Screw, BHCS, M2.5×6 6
Machine Screw, BHCS, M3x6 63
Machine Screw, BHCS, M3x8 110
Machine Screw, BHCS, M3x10 28
Machine Screw, BHCS, M3x12 28
Machine Screw, BHCS, M3x16 6
Machine Screw, BHCS, M3x25 12
Machine Screw, BHCS, M3x30 12
Machine Screw, BHCS, M3x35 33
Machine Screw, BHCS, M3x40 12
Self-tapping Screw, M2x10 17
T Nut, 15×5.4×1.5 2
Brass Heatset Insert, M3x5x4 60
LDO customized Brass Heatset Insert Tool (Solder Tip) 1
3M VHB Tape 1
Rubber Feet, 14x11x9mm 4
Magnets, Neodymium, Round, 6x3mm 10
Drill bit, 2mm 1
Hex Wrench, 1.5mm 3
Hex Wrench, 2mm 1
Hex Wrench, 2.5mm 1

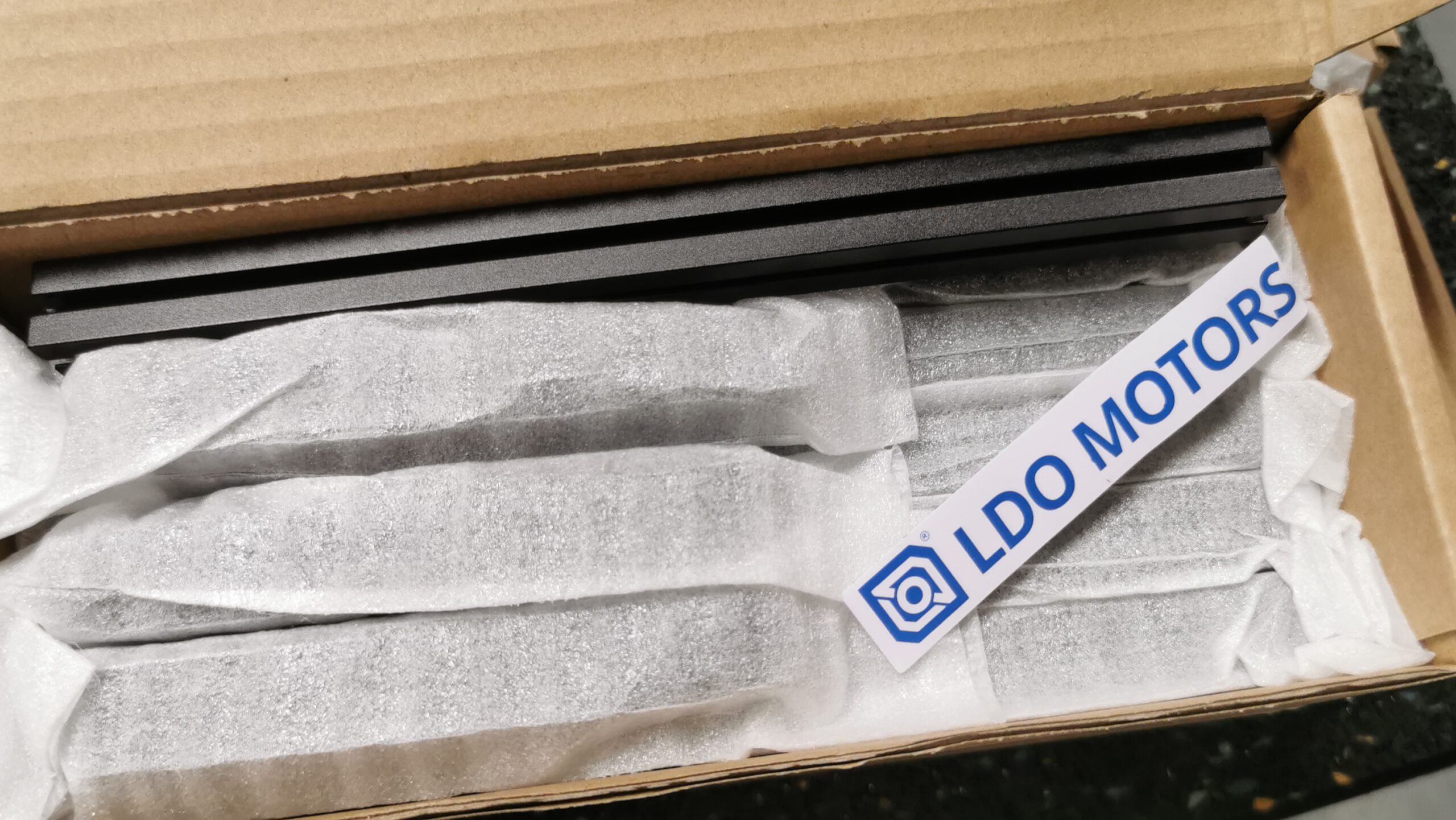

Frame Kit LDO V0 Frame kit Black 1
Linear Rail Kit LDO customized Linear Rail Mounting Bar for V0.1 5

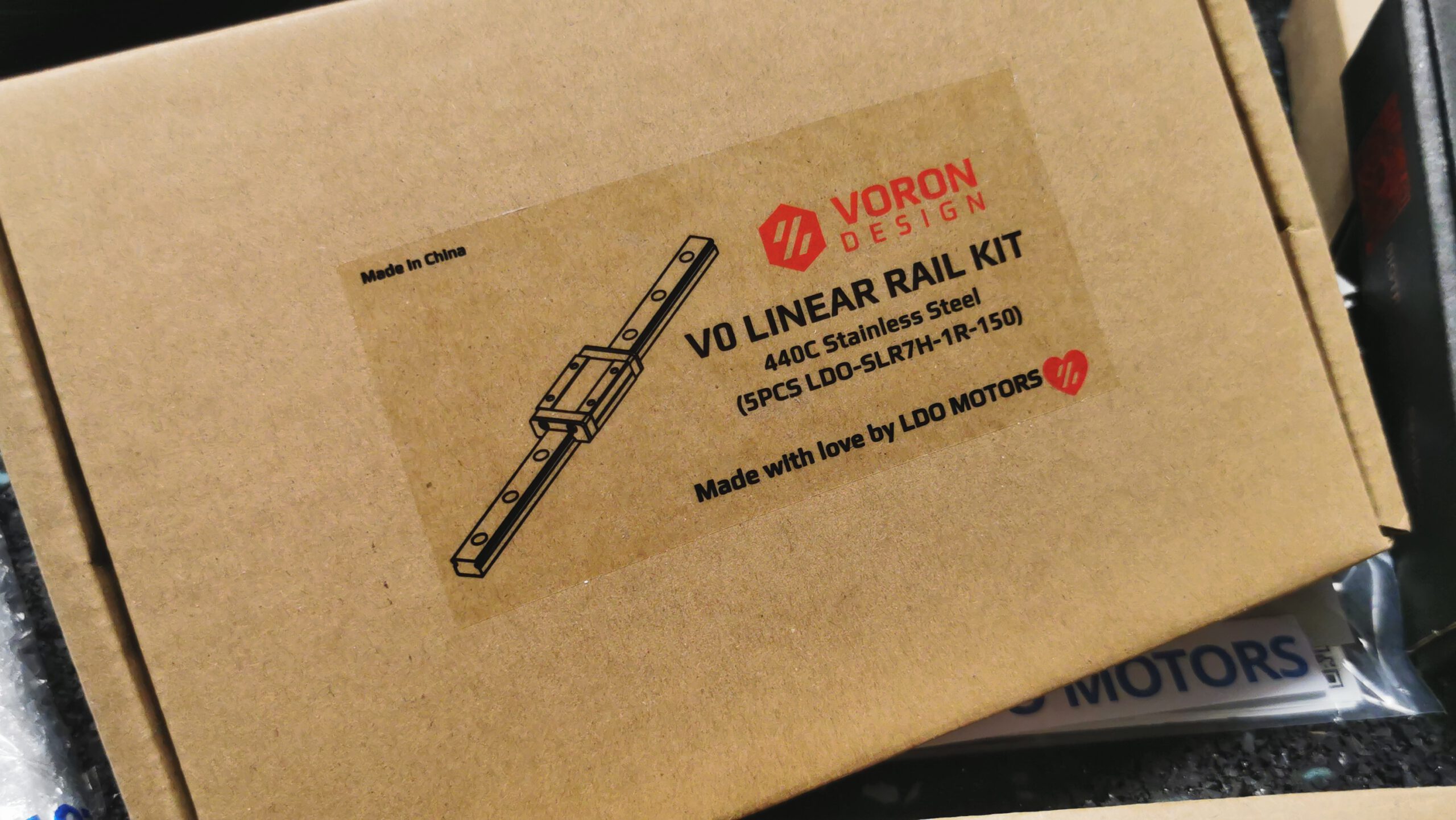

LDO Stainless Steel Linear Rail Kit 5xLDO-SLR7H-150Z0 1
Motor Kit LDO V0.1 Motor Kit, Teflon coated Z motor leadscrew shaft. 1
LDO Anti Backlash Nut, POM, Tr8X8 1
Panels Side Panel 211mm x 229mm x 3mm Acrylic, Clear 2
Front Door 212mm x 239mm x 3mm Acrylic, Clear 1
Rear Panel 212mm x 248mm x 3mm Acrylic, Matte Black 1
Mid panel 170mm x 230mm x 3mm Acrylic, Matte Black 1
Motor Panel 37mm x 122mm x 3mm Acrylic, Matte Black 1
Deck Panel 172mm x 209mm x 3mm Acrylic, Matte Black 1
TopHat Front/Rear Panel 2mm Acrylic, Clear 2
TopHat Side Panel  2mm Acrylic, Clear 2
TopHat Top Panel 2mm Acrylic, Clear 1

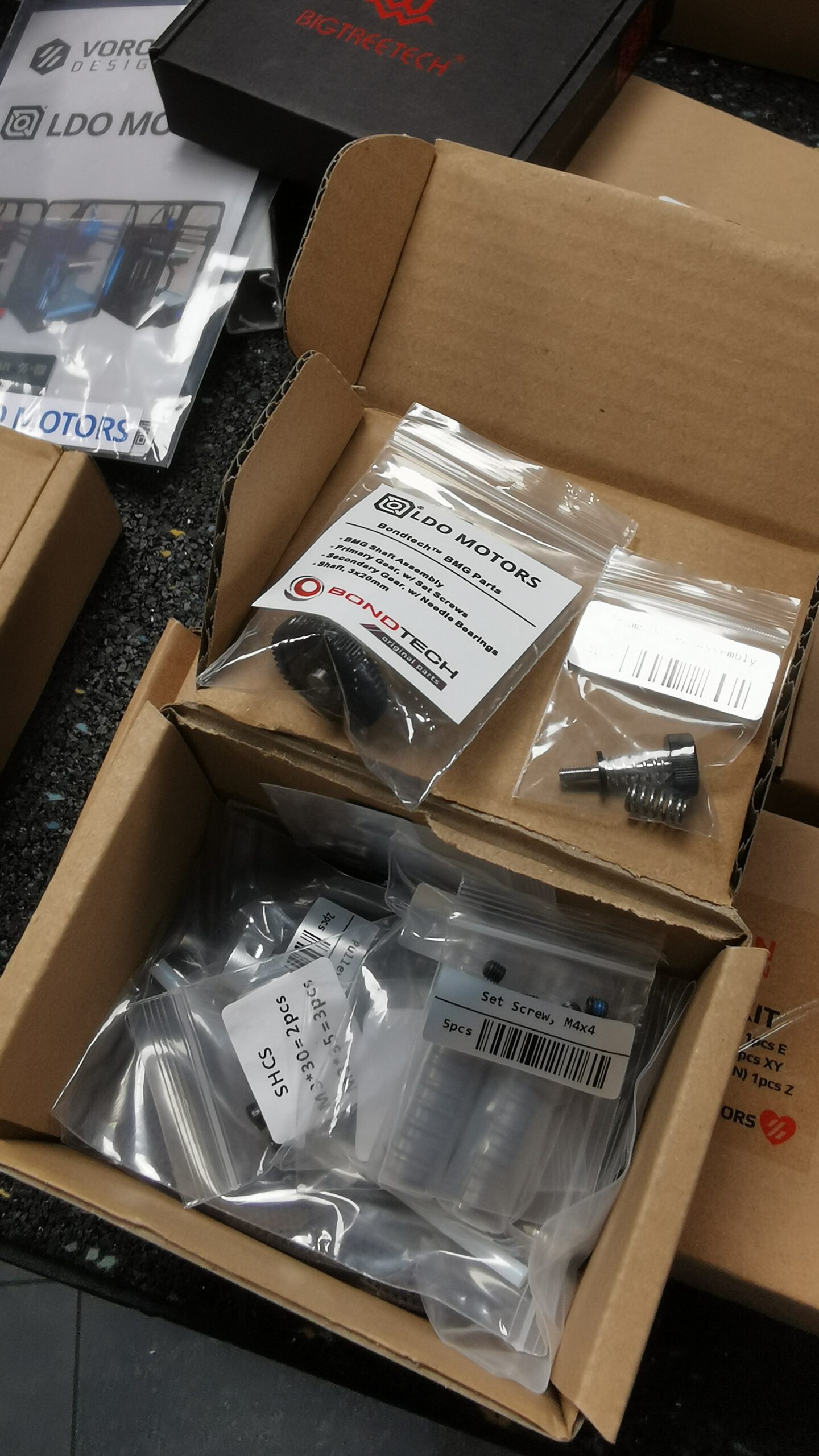

Toolhead & Motion Original Bondtech Drive Gear Kit 1
Teflon Tube, 4x2mm 1
Thumb Screw Assembly 1
Bearing, MR85 2
Bearing, F623-RS 24
Pulley 2GT 20T (6mm wide) (5mm bore) 2
Gates Belt, 2GT RF, 6mm 4 meter
Machine Screw, SHCS, M3x30, Partially Threaded 2
Machine Screw, SHCS, M3x35, Partially Threaded 3
PSU Meanwell LRS-150-24 1
Controller Bigtreetech SKR mini E3 (v2) 1
Power Cord C13 Power Cord, 1.5 meter 1
Hotend Phaetus DragonFly BMO Hotend (Please don’t use the SCHC M2.5×6 in the hotend kit,

and use the BHCS M2.5×6 from hardware kit for mounting)

1
N/A PVC Wire Duct, 20Wx25H-mm 330mm







Weitere Informationen

Gewicht 10 kg
