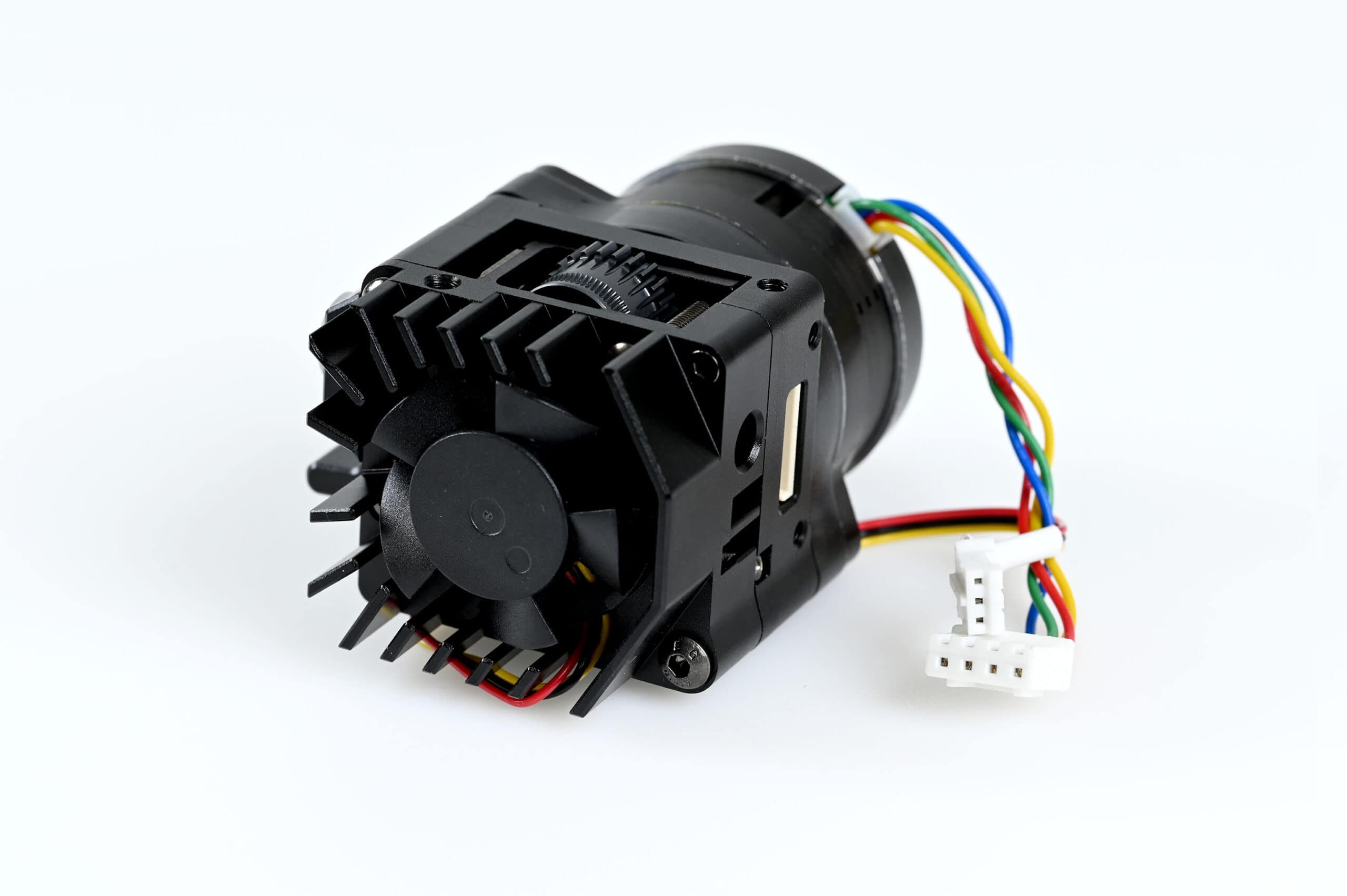

LDO SMART ORBITER V3.0
This Smart Orbiter v3.0 manufactured by LDO Motors is an innovative all in one dual drive extruder / hot end tool head assembly.
The main mission of this design is the integration of the well proven Orbiter v2 concept into a lightweight all in one smart extruder.
The Orbiter v3.0 was designed by Dr. Lorincz Robert, for more information visit https://www.orbiterprojects.com/so3/
- Pure plated copper heat-block with 24v/72W ceramic heater and 0.4mm Bondtech CHT nozzle for best possible weight to flow ratio
- Heat-break performance optimized with finite element analysis for extreme temperature gradient to ensure clogless free printing experience
- Unique tensioning mechanism with elastic predefined tension levels
- Frameless recessed fan to reduce the extruder weight and outside dimension
- Large RNC coated dual drive gears with planetary gear reduction, similar to Orbiter v2.0
- New precision main shaft design to reduce gear eccentricity
- Full aluminum housing with Delrin plastic gears for low noise and long lifetime
- The smart feature – integrated electronics
- Easy removal of the secondary drive gear for easy cleaning and maintenance
- Double filament exit guide system for best TPU printing performance
- Overall weight is 175g
